Animation and physics

FIT ČVUT, ZS 2019

Ing. Adam Vesecký

vesecky.adam@gmail.com

Czech technical University in Prague

Faculty of Information Technology

Department of Software Engineering

Math and Dynamics

JS Math functions

Math.pow(x,y) - returns the value of x to the power of y
Math.sqrt(x) - returns the square root of x
Math.ceil(x) - returns the value of x rounded up to its nearest integer
Math.floor(x) - returns the value of x rounded down to its nearest integer
Math.trunc(x) - returns the integer portion of a number
~a - inverts the bits of its operand
a << b - shifts a in b bits to the left
a >> b - shifts a in b bits to the right
a >>> b - shifts a in b bits to the right, shifting in 0s from the left
Math.atan(x) - returns the arctangent (in radians) of a number
Math.atan2(y, x) - returns the angle in the plane (in radians) between the positive x-axis and the ray from (0, 0) to the point (x, y)
Math.random()- generates a random number in range (0, 1)
min + Math.floor((max - min + 1) * Math.random())- generates a random integer in range [min, max] exclusively
Math.random() > (1 - probability) - checks for an occurrence of an event at given probability
for each bitwise operations, the operators are converted into 32-bit integers

Math functions

if we work with positive numbers, ~~v is a common choice to get the integer part
floor, ceil and round are conceptually different from trunc

	trunc	floor	ceil	round	~~v	v \| 0	v << 0	v >> 0	v >>> 0
3.8	3	3	4	4	3	3	3	3	3
3.2	3	3	4	3	3	3	3	3	3
-3.2	-3	-4	-3	-3	-3	-3	-3	-3	4294967293
-3.8	-3	-4	-3	-4	-3	-3	-3	-3	4294967293

Math support library

located in libs/pixi-math
contains random generator, steering behavior basic algorithms, quad-tree and matterJS-to-pixi binding components
new Random().normal(min, max, scale) generates a random number from normal distribution

Uniform distribution

Somehow normal distribution

Example: Random spread

src/labs/lab04/example-distribution-spread.ts
uses Box-Muller Transform and Skew-normal transform to generate normal distribution from the uniform distribution

Uniform distribution

Somehow normal distribution

Euler integration

Explicit method

adds energy to the system

Improved method

Implicit method

decreases energy from the system

Euler integration

src/labs/lab04/example-dynamics-balistic.ts
explicit
improved
implicit

60 FPS

20 FPS

5 FPS

Euler integration

src/labs/lab04/example-dynamics-circle.ts
explicit
improved
implicit

60 FPS

20 FPS

5 FPS

Relaxation

src/labs/lab04/example-verlet.ts
simple relaxation technique
gravity tries to move all particles downward
PinConstraint holds the topmost particle steady
DistanceConstraint tries to keep a constant distance between two particles

Sprite animations

Pixi animations

detailed tutorial
needs a spritesheet and metadata (e.g. from OpenGameArt)
metadata contains all sprites, offsets, orders and other information needed to compose animations
sprites can be exported to pixi format via TexturePacker

...

"warrior07": {

"frame": {

"x": 1584, "y": 540,

"w": 528, "h": 540

}

"animations": {

"warrior": ["warrior01","warrior02","warrior03",

"warrior04","warrior05","warrior06","warrior07"]

"meta": {

"image": "warrior.png", "format": "RGBA8888",

"size": {"w":2033,"h":2030}, "scale": "1"

}

Pixi animations

Attributes

onFrameChange - function to call when an AnimatedSprite changes which texture is being rendered
play(): void; - plays the animated sprite
gotoAndPlay(frameNumber: number): void;- goes to a specific frame and begins playing the AnimatedSprite.
gotoAndStop(frameNumber: number): void; - stops the AnimatedSprite and goes to a specific frame.

let sheet = this.engine.app.loader.resources['./assets/lab02/warrior.json'].spritesheet;

let animation = new PIXI.AnimatedSprite(sheet.animations['warrior']);

animation.animationSpeed = 0.167;

animation.loop = true;

animation.play();

Import

if metadata is available, we can use TexturePacker to export it into PIXI format
if metadata isn't available, we need to specify it manually
- we can use Shoebox to extract sprites from spritesheets
- pivots need to be specified manually

Json structure

{

"frames": {

"background.png":

{

"frame": {"x":1,"y":1,"w":1920,"h":1080},

"rotated": false,

"spriteSourceSize": {"x":0,"y":0,"w":1920,"h":1080},

"sourceSize": {"w":1920,"h":1080},

"anchor": {"x":0,"y":0}

"frame01.png":

{

"frame": {"x":1106,"y":1379,"w":158,"h":316},

"rotated": true,

"trimmed": true,

"spriteSourceSize": {"x":15,"y":3,"w":158,"h":316},

"sourceSize": {"w":187,"h":324},

"anchor": {"x":0.5,"y":1}

}

"animations": {

"anim01": ["frame01","frame02.png","frame03.png"],

"anim02": ["frame65","frame66","frame67"]

"meta": {

"image": "spritesheet.png",

"format": "RGBA8888",

"size": {"w":2033,"h":2030},

}

frames - all frames inside the spritesheet
animations - frame sequences grouped into named animations
meta - link to the spritesheet file, color format and its size

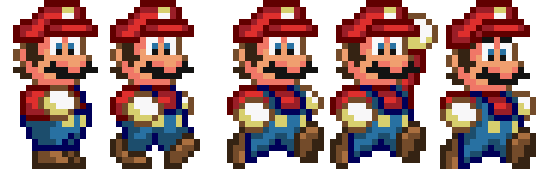

Manual handling

src/labs/lab04/example-sprite-custom.ts
for simple animations, we can define a custom format
we only need to modify frame variable in BaseTexture

let texture = this.engine.app.loader.resources[SPRITESHEET].texture;

let frames = 5, frameCounter = 0;

new ECSA.Builder(this.engine.scene)

.asSprite(texture)

.withParent(this.engine.scene.stage)

.anchor(0.5)

.withComponent(new ECSA.GenericComponent('animator')

.setFrequency(10)

.doOnUpdate((cmp, delta, absolute) => {

cmp.owner.asSprite().texture.frame = new PIXI.Rectangle(

(texture.width / frames) * (frameCounter++ % frames),

0, texture.width / frames, texture.height);

}))

.build();

Example: Pacman

LINK
source code: src/games/pacman
512x512 spritesheet

Skeletal 2D animations

Skeletal animations

characters are represented as a hierarchical set of interconnected bones
instead of animating the character, we animate the bones
for 2D animations, the texture is warped along the modified skeleton
two major applications for 2D animations:
- Spine - paid
- Dragonbones - free

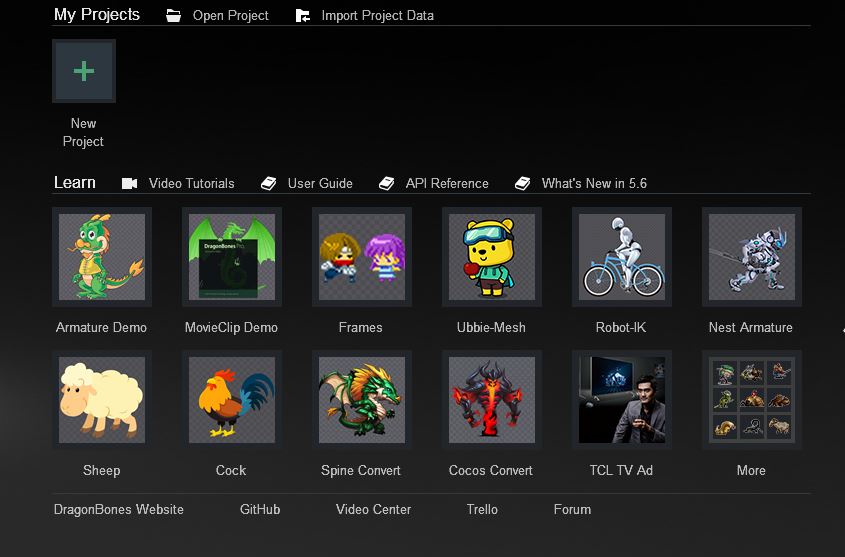

Dragonbones

load some of the built-in examples

Dragonbones

all animations can be easily modified in the timeline

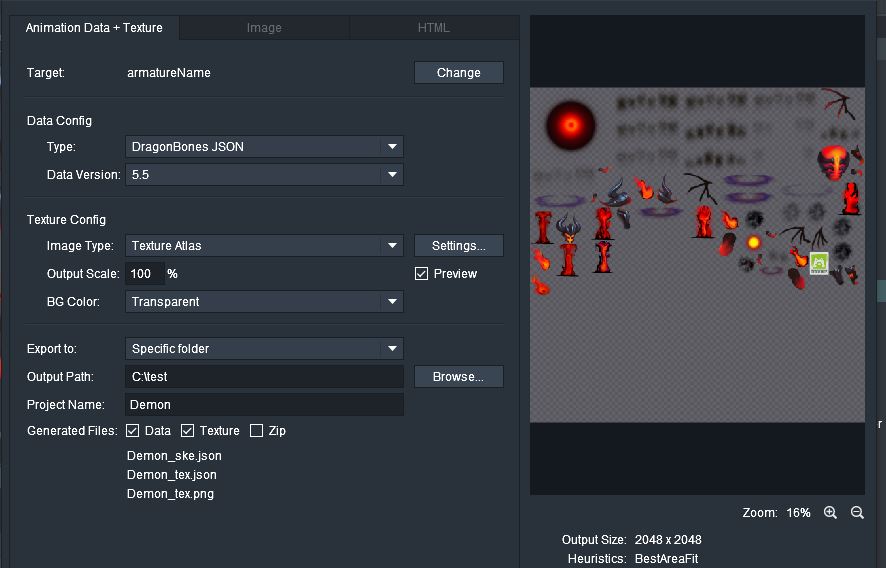

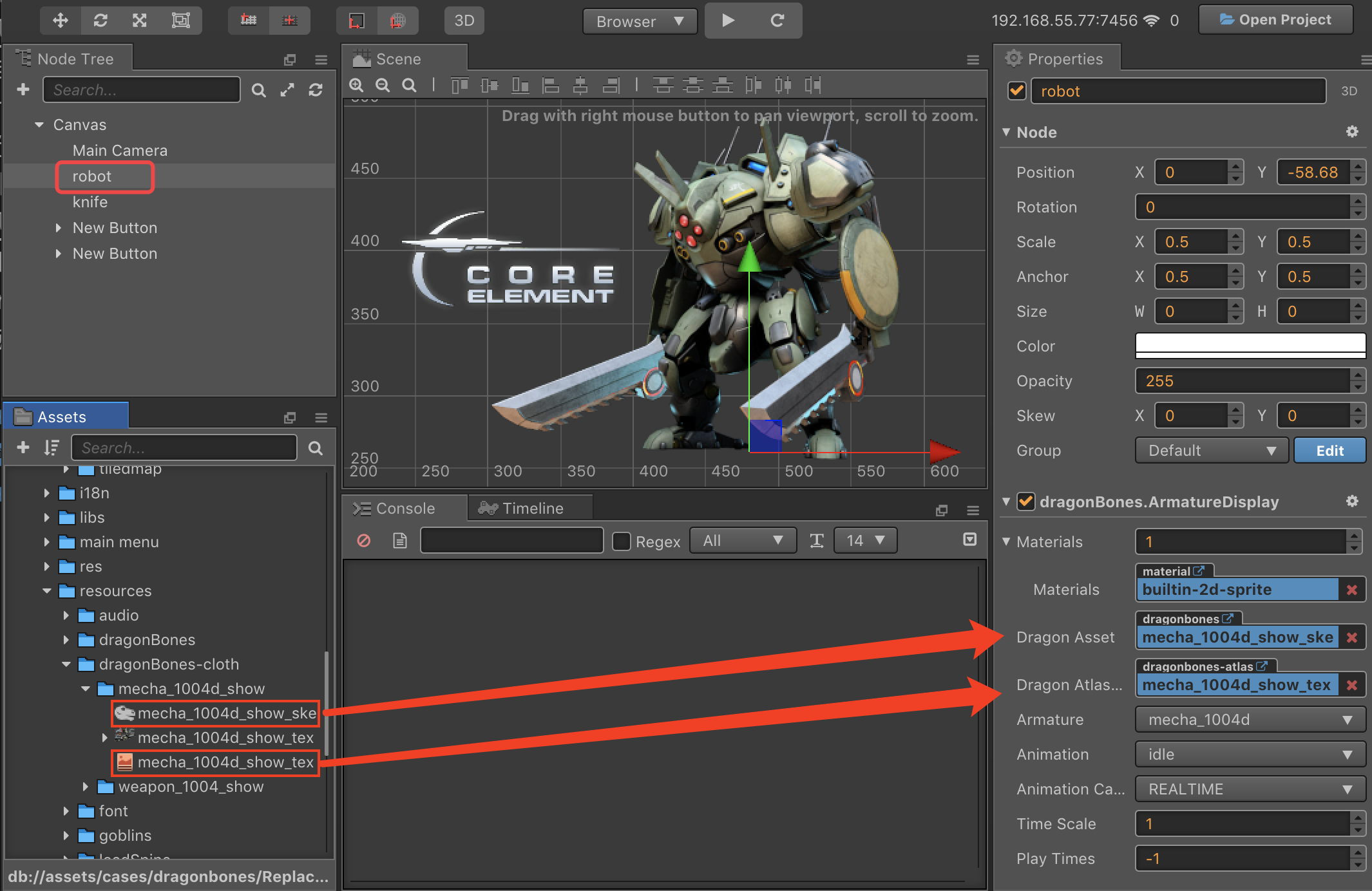

Dragonbones

export as DragonBones JSON format 5.5
the export will create two JSON structures and one spritesheet

Dragonbones

src/labs/lab04/example-dragonbones.ts
Dragonbones-Pixi library is in libs/dragonbones
parsing the data takes a lot of time, it should be handled asynchronously

const factory = PixiFactory.factory;

factory.parseDragonBonesData(this.engine.app.loader.resources['Demon_ske.json'].data);

factory.parseTextureAtlasData(this.engine.app.loader.resources['Demon_tex.json'].data,

this.engine.app.loader.resources['Demon_tex.png'].texture);

const armatureDisplay = factory.buildArmatureDisplay('Demon', 'Demon');

armatureDisplay.animation.play('normalAttack', 1);

Steering behaviors

set of algorithms and principles that help autonomous agents move in a realistic manner
by using simple forces

Seek

src/labs/lab04/example-steering-seek.ts
the agent goes toward a target

Pursuit

src/labs/lab04/example-steering-pursuit.ts

Pursuit + Evade

src/labs/lab04/example-steering-evade.ts

Wander

src/labs/lab04/example-steering-wander.ts
3 attributes: radius, distance and jittering

Multiple behaviors

src/labs/lab04/example-steering-multiple.ts
the algorithms can pile up, calculating a weight-sum for each force

QuadTree

src/labs/lab04/example-quadtree.ts
each inner node has 4 children
overlapping objects are put into all children they touch
only objects in the same leaf can be in collision

QuadTree

20 objects, 5 for each cell

50 objects, 10 for each cell

100 objects, 2 for each cell

MatterJS

https://brm.io/matter-js/
2D physics engine
rigid bodies
compound bodies
composite bodies
concave and convex hulls
restitution
momentum
friction
events
constraints
gravity
sleeping and static bodies

Architecture

Body - contains methods for creating and manipulating body models
IBodyDefinition - a physical object, contains all necessary attributes
all manipulations are handled by static methods in Body class

Architecture

ICompositeDefinition - contains composition of bodies
Composite - contains methods to manipulate with composite objects, consisting of many bodies

Architecture

IPair - contains attributes for a colliding pair of two bodies
IConstraintDefinition - contains attributes for a constraint that connects bodies together in order to simulate interaction
Events:
- sleepStart, sleepEnd, beforeAdd, afterAdd, beforeRemove, afterRemove, afterUpdate, beforeRender, afterRender, beforeUpdate, collisionActive, collisionEnd, collisionStart, beforeTick, tick, afterTick, beforeRender, afterRender, mousedown, mousemove, mouseup

Architecture

Bodies - static methods for creating of new simple bodies
Composites - static methods for creating of complex objects
- car - creates a composite with simple car setup of bodies and constraints
- chain - chains all bodies in the given composite together using constraints
- mesh - connects bodies in the composite with constraints in a grid pattern
- softBody - creates a simple soft body like object
Bounds static methods for defining outer bounds of the scene

Simple setup

let engine = Matter.Engine.create();

let world = engine.world;

let render = Matter.Render.create({

element: document.body,

engine: engine });

Render.run(render);

// insert objects

Matter.World.add(world, Matter.Composites.car(150, 100, 150, 30, 30));

let runner = Matter.Runner.create();

Matter.Runner.run(runner, engine);

Matter.Render.lookAt(render, {

min: { x: 0, y: 0 },

max: { x: 800, y: 600 }

});

Matter and PIXI

MatterJS contains its own renderer
in order to render objects in PIXI, we need to create a copy of every MatterJS body and synchronize it
PIXI renders PIXI.Graphics objects and ECSA library synchronizes their state with MatterJS
the update can be handled by MatterJS.Runner or manually by invoking Matter.Runner.tick

Example: Air friction

src/labs/lab04/example-matter-airfriction.ts

Example: Bridge

src/labs/lab04/example-matter-bridge.ts

Example: Car

src/labs/lab04/example-matter-car.ts

Example: Chains

src/labs/lab04/example-matter-chains.ts

Example: Friction

src/labs/lab04/example-matter-friction.ts

Example: Mixed Shapes

src/labs/lab04/example-matter-mixed.shapes.ts

Example: Newton's cradle

src/labs/lab04/example-matter-newton-cradle.ts
